Engine Block World Products Race Man-O-War Aluminum
|
Manufacturer:
World Products | | SKU: |
WOR-087510
|
Price: $4,587.99
$4,499.99 087510
$4,599.99 087510-4.000
$4,499.99 087520
$4,599.99 087520-4.125
$4,499.99 087572
$4,599.99 087572-4.000
$4,499.99 087582
$4,599.99 087582-4.125
|
| Description | | When it comes to Ford 302/351 replacements, this long-awaited alloy casting will quickly become the leader in the aluminum block field. It is the latest iteration of the bulletproof iron Man O'War - only it's 110 pounds lighter! | | Technical Specifications of...
Man O'War Aluminum Blocks Material: 357 T6 Aluminum
Deck Heights: 8.200, and 9.500"
Deck Thickness: .600" minimum
Cam Bearings: Stock - can be bored to 60mm
Bore: 3.990" (bore to 4.000") or 4.115" (bore to 4.125")
Cylinder Head Attachment: Stock plus 2 extra head bolts per cyl. (not req.)
Maximum Bore: 4.155"

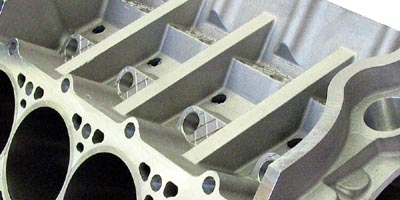

Water Jackets: Expanded for better cooling
Lubrication: Priority main oiling system. Dry sump capable
Filtration: Integral mount for spin-on filter
Oil Pan Rails: Stock Ford
Crank Clearance: Can use up to 4.250" crank

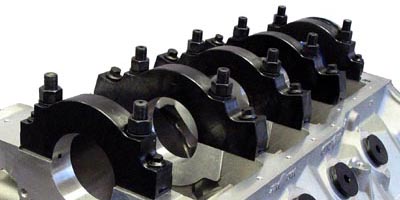

Main Caps: Splayed billet steel, 4 bolt
Oil System: .500" galleys | | Man O'War Aluminum 302/351 Bare Engine Blocks | | Part # | Description | Deck | Bore | Mains | Main Caps | Price | | 087510 | Aluminum Block | 8.200 | 3.990 | 2.248 | Four Bolt Billet Splayed | $4499.99 | | 087520 | Aluminum Block | 8.200 | 4.115 | 2.248 | Four Bolt Billet Splayed | $4499.99 | | 087572 | Aluminum Block | 9.500 | 3.990 | 2.749 | Four Bolt Billet Splayed | $4499.99 | | 087582 | Aluminum Block | 9.500 | 4.115 | 2.749 | Four Bolt Billet Splayed | $4499.99 | | Man O'War Aluminum 302/351 Prepped Engine Blocks | | 087510-4.000 | Prepped Aluminum Block | 8.200 | 4.000 | 2.248 | Four Bolt Billet Splayed | $4599.99 | | 087520-4.125 | Prepped Aluminum Block | 8.200 | 4.125 | 2.248 | Four Bolt Billet Splayed | $4599.99 | | 087572-4.000 | Prepped Aluminum Block | 9.500 | 4.000 | 2.749 | Four Bolt Billet Splayed | $4599.99 | | 087582-4.125 | Prepped Aluminum Block | 9.500 | 4.125 | 2.749 | Four Bolt Billet Splayed | $4599.99 |
